DC-Couple
-
AC-Couple

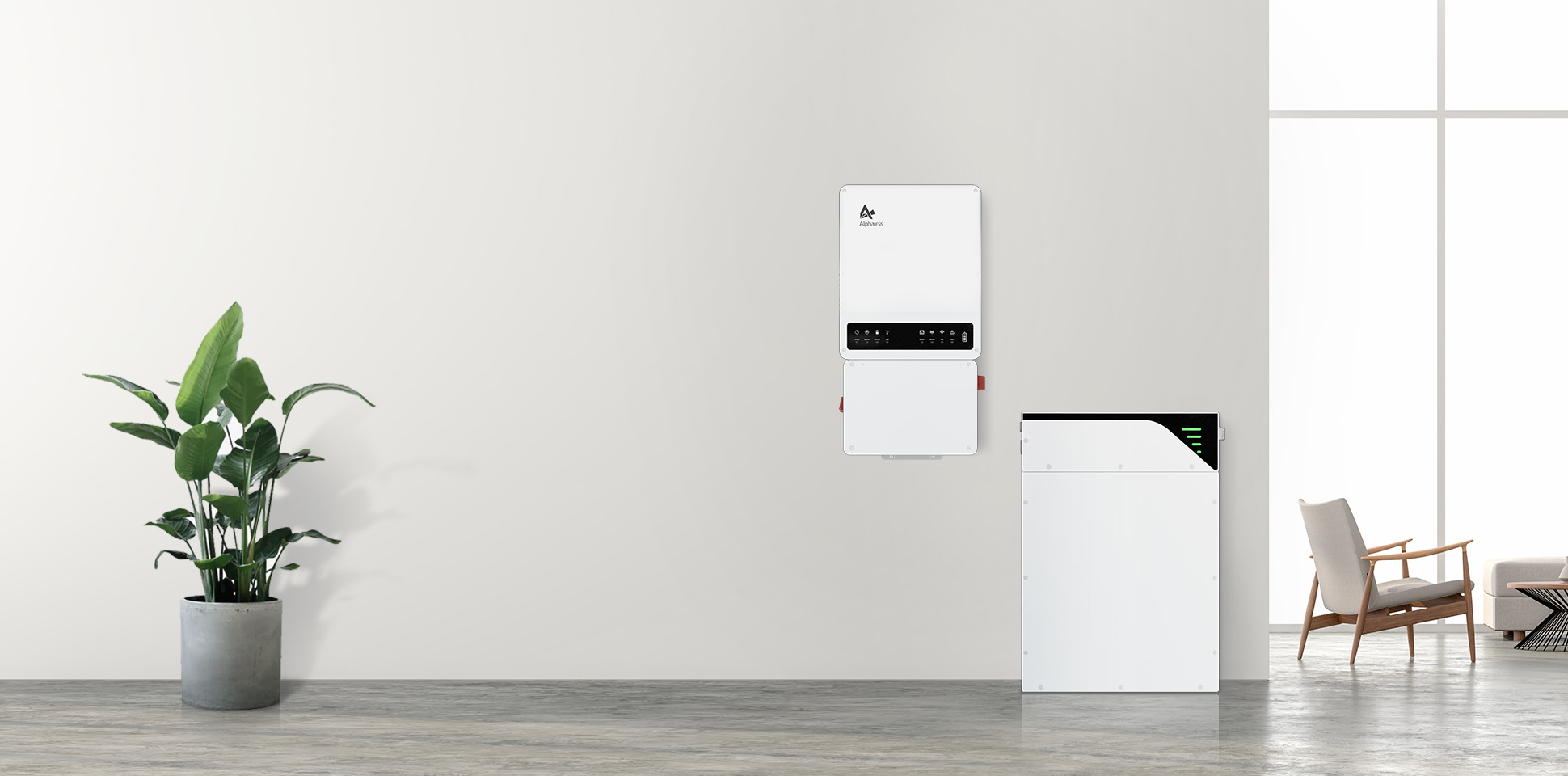

SMILE-SP7.6/9.6
7.6 / 9.6 kW
8.2 - 49.2 kWh
North America Only
This system is with 7.6/9.6kW Hybrid Inverter and a standard 8.2kWh battery pack which can support max 11.5kWp /15kWp PV input. SMILE-SP/SPB can do retrofitting a well with grid forming function which is fit for all PV inverters

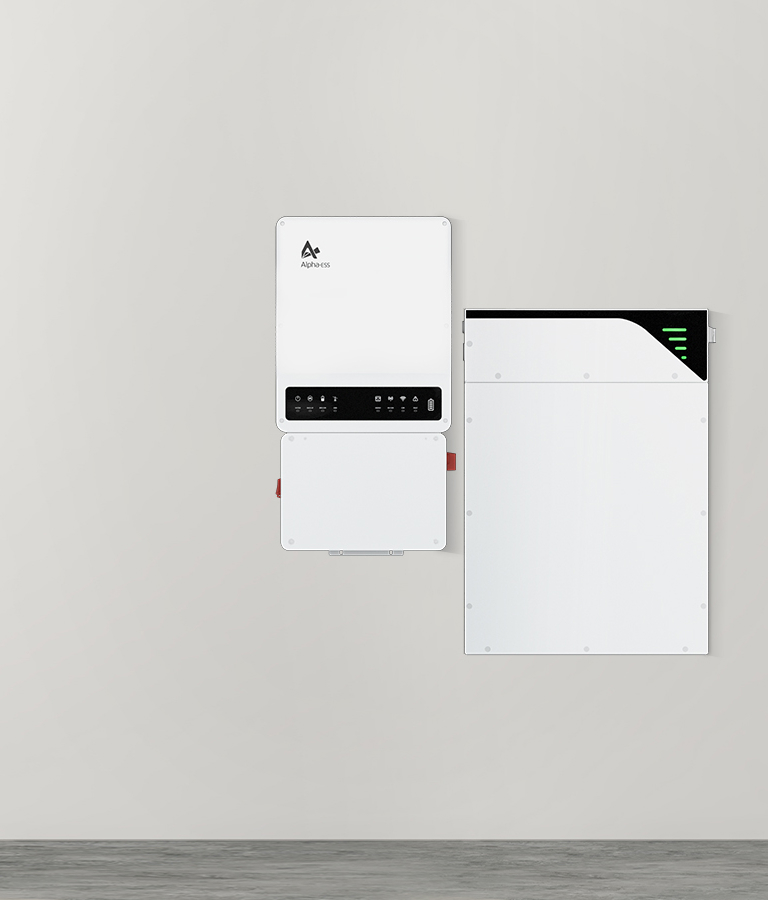

SMILE-SPB7.6/9.6
7.6 / 9.6 kW
8.2 - 49.2 kWh
North America Only
The AC inverter takes AC power from solar string/micro inverter, during a power outage the system would provide grid-forming signals to keep the solar string/micro inverters alive and continue producing power as a off-grid system.
-
Fully
Home Backup -
Micro-grid
Applications -
WIFI
Module Integrated -
High
Efficiency Battery -
AFCI &
Rapid Shutdown
.jpg)
SPECS
-
Max. AC Output Power
7.6 / 9.6 kW
-
Capacity Range
8.2 - 49.2 kWh
-
Battery Chemistry
LFP (LiFePO4)
-
Max. Charging/Discharging Current
50 A
-
Depth of Discharge (DoD)
95%
-
Operating Temperature Range
-10 °C ~ 50 °C
-
IP Protection
IP65 / IP21
-
Warranty
10 Year Product Warranty

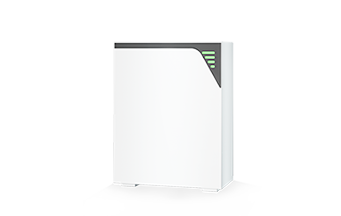

BATTERY MODULE
Lego-style modular design, easy installation and expansion to meet different requirements.
SMILE-BAT-8.2PHA
-
Module Capacity
8.2 kWh
-
Cycle Life
10 000
-
Expansion
1 ~ 6 in parallel
