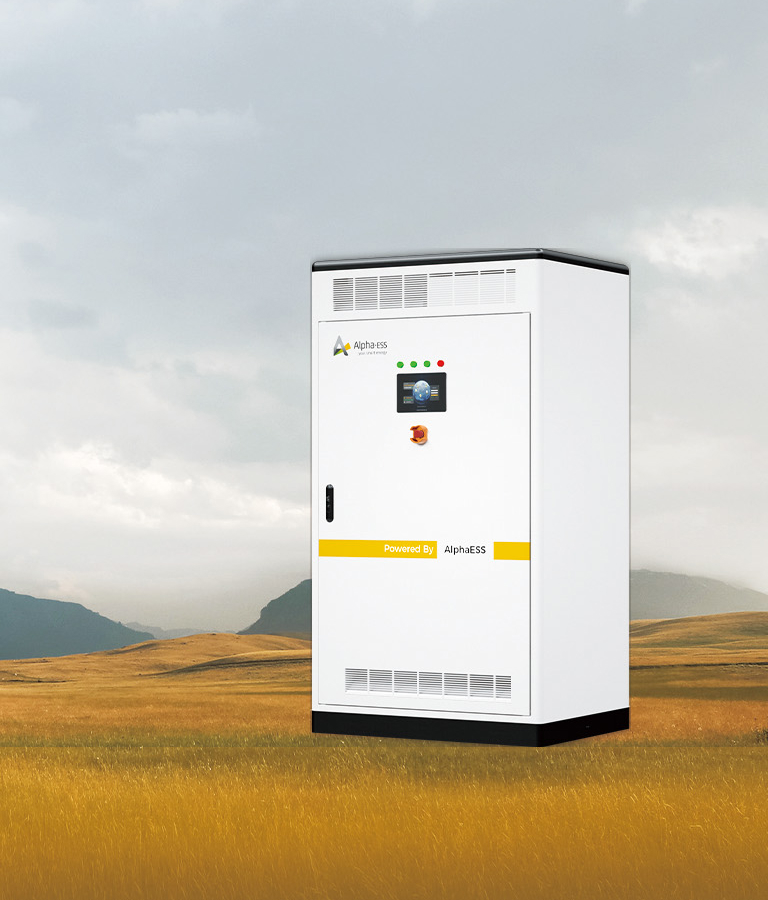

STORION-H30
30 kW
Max. 96.7 kWh
-
The on/off-grid large industrial container on the market for its 30kW Hybrid-Coupled system. Also, H30 could be programmed to discharge and meet the energy demand on project basis, designed for small businesses. The most special design for this system is the plug & play battery module installation which make the installation easier.
-
Safe & Reliable
-
High Integration
-
Advanced Air
Cooling Technology -
Multiple Options
Charging/Discharging rate: 0.25p~1p -
Multiple Operation Mode
Automatic on/off grid
switch within 30ms -
Easy Battery Installation
Plug and Play withou
Cable Connection -
High Flexibility
Support Parallel Connection
on DC/AC Side
SPECS
System Specification
Nominal Output Power
30 kW
Maximum storage capacity
96.7 kWh
Battery Chemistry
LFP (LiFePO4)
Parallel connection
Max. 10 on DC side & Max. 3 on AC side
IP Protection
IP54 (Outdoor)
Dimension (W x D x H)
1200x900x2160mm
Battery Specification
Module Model
Nominal Voltage
Module Capacity
Max. Charging/Discharging Rate
IP Protection
Cycle Life
Operating Temperature Range
-
Module Model
M38210-S
Nominal Voltage
38.4 V
Module Capacity
8.1 kWh
Max. Charging/Discharging Rate
4.05 kW (0.5P)
IP Protection
IP20
Cycle Life
≥ 6000
Operating Temperature Range
-30 °C ~ 50 °C
-
Module Model
M7790-S
Nominal Voltage
76.8 V
Module Capacity
6.93 kWh
Max. Charging/Discharging Rate
6.93 kW (1P)
IP Protection
IP20
Cycle Life
≥ 6000
Operating Temperature Range
-30 °C ~ 50 °C
